Thomas Jefferson High School for Science and Technology

OpenGL Graphics

in the

Computer Systems Lab


The OpenGL graphics system is an advanced library of routines that allows programmers to create sophisticated applications involving interactive graphics in a three-dimensionsal environment developed by Silicon Graphics, Inc. OpenGL makes it possible to produce a variety of visual effects including 3-D animations in perspective, richly colored objects with textures, and unusual lighting effects.
Here are some useful resource sites:

In our Supercomputer Applications course in the Computer Systems Lab at Jefferson, we have been using the text book OpenGL Programming Guide, 2nd Edition, by Mason Woo, Jackie Neider, and Tom Davis, Addison-Wesley Developers Press, 1997. It is the "Official Guide" to learning OpenGL version 1.1, includings examples in GLUT, the OpenGL Utility Toolkit. GLUT has many time saving routines allowing the user to create simple windows, handle keyboard and mouse interaction, access predefined shapes, and do many other cool things.

TJ Web Pages from Supercomputer Applications that stress OpenGL

Originally designed for high powered Silicon Graphics workstations, there are versions or clones of OpenGL available for personal computer systems. At Jefferson, we are running Mesa, a free version of OpenGL that performs satisfactorily on our dual 400 Mhz Celeron systems running LINUX. We encourage you to introduce students to OpenGL, and suggest the following links for additional resources:

Other OpenGL Software Resources

Sample Programs

Below are some sample programs we have used to introduce our students in the Supercomputer Applications class at Jefferson to the power of OpenGL graphics. Originally, we were writing programs using the "glaux.h" libraries for interfacting with X-windows. However, currently we are using the "glut.h" routines which seem to have more functionality and are easier to use. There are examples of both of these types of programs in the code below.

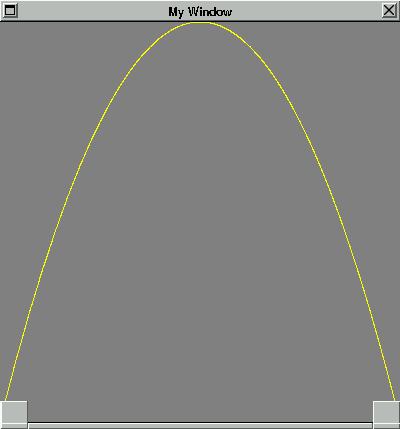

Basic Window in 2-D

Basic Window Program

This program creates a very basic window in OpenGL. The program requests the user to enter the window size and the location where to place it on the screen. The program then opens a window with the background set to gray, and the display fucntion draws a yellow parabola, point by point.

Source Code
Using Text

Windows with Text

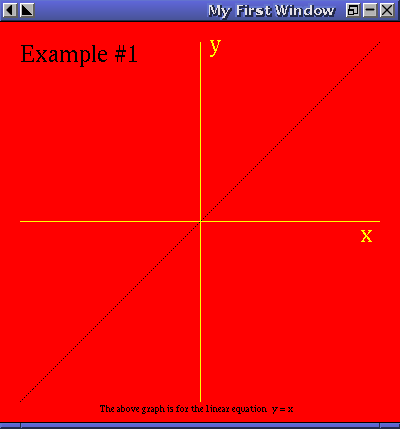

This program creates a simple window using additional routines from the OpenGL Utility Tool Kit (GLUT), found in "glut.h". This program also demonstrates how to display text on the screen using bit-mapped raster graphics, and uses the operations glPushMatrix(), glPopMatrix(), and glTranslatef() to move things to appropriate locations.

Source Code

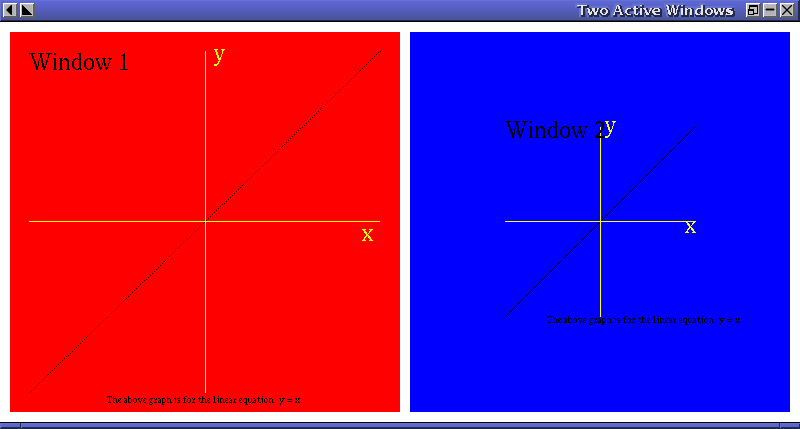

Sub-windows, Scaling, Mouse and Keyboard Routines

Mouse Routines

This program creates two sub-windows, and scales one of the images using Orthographic Projection. It also demonstrates how to create keyboard and mouse routines that are active in the separate windows, as well as how to use keyboard functions.

Source Code
Creating Two Separate Windows

Two Windows Two Windows

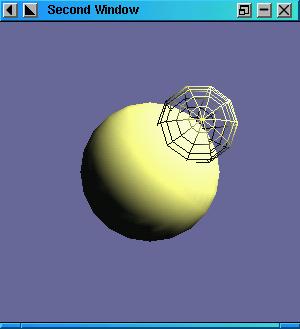

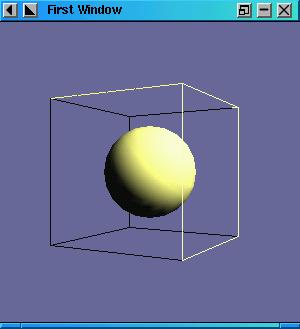

This program creates two separate windows, one with a simple sphere enclosed by a wire frame cube, and the other with just the simple sphere. It also uses several other glut routines to tell which window is being accessed, and what the mouse status is when a button is pressed.

Source Code

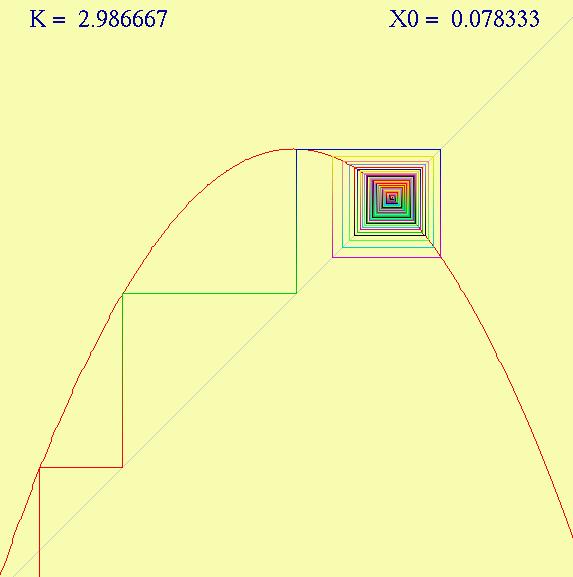

Interactive Bifurcation Program


This program uses mouse routines to collect data from the screen. It then generates the output of the logistic difference equation, y=kx(1-x) , as it is iterated for different values of x and k where bifurcation can be observed.

Source Code

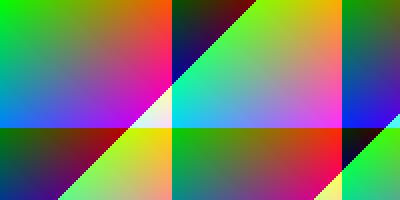

Saving Graphic Images to a TARGA File

Targa File

This program does not require OpenGL, but it does generate a graphical image in the form of a Targa file, a standard graphic file format. When an image generated by a program requires heavy computation to produce, it is sometimes wise to draw the graphic once, and also save it to a file. Then if the window is ever moved or resized, just load the image from the targa file rather than computing it again.

Source Code

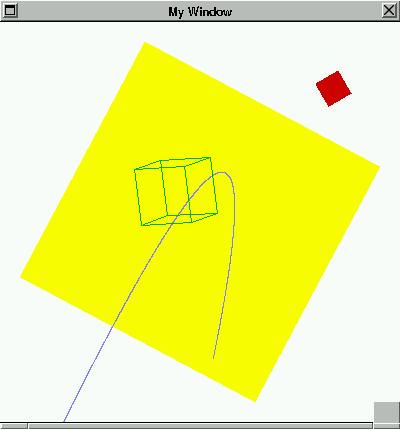

Shapes and Animation


This program creates several objects including a large yellow square, a small red square, a parabola, and a wire-frame box using the "glaux.h" libraries. It introduces the concept of changing a point of refernce in the coordinate plane by pushing or popping a transformation. It utilizes several other OpenGL primatives including rotation, translation, and scaling. It creates a "smooth" animation by using a technique known as double buffering.

Source Code

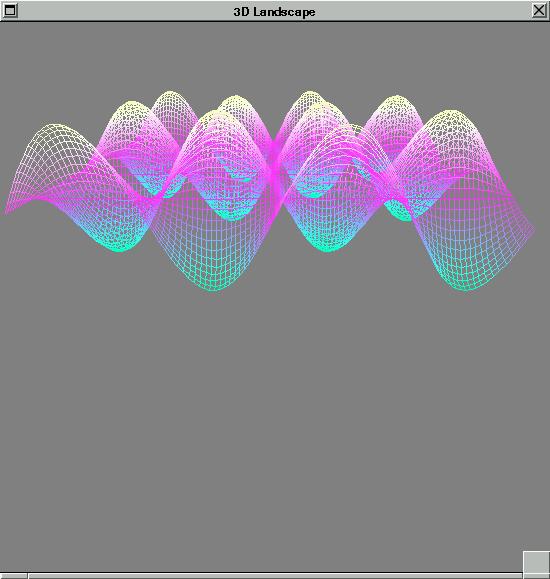

3-D Landscape #1 - Scalable surface


This program creates a simple 3-Dimensional surface using "glut.h" that can be manipulated in space using the arrow keys. It uses Perspective rather than Orthographic projection. The program scales high and low values in the height range, and adjusts the drawing color accordingly. The curved surface is generated by a product of sine functions, but with a new period and amplitude.

Source Code

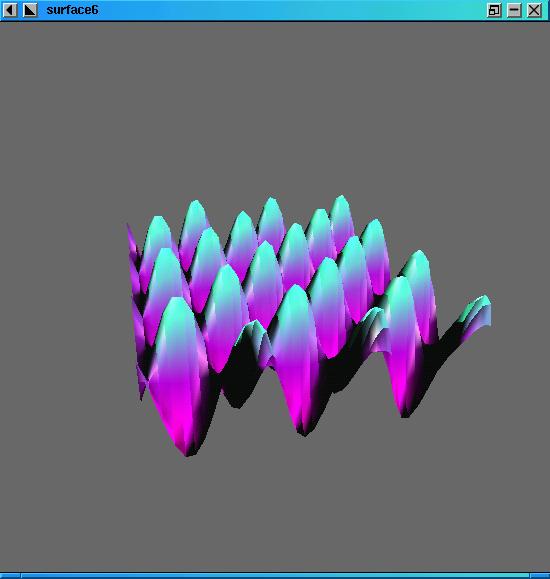

3-D Surface #6 - Lighting

3-D Surface with Lighting

This program is a variation of the 3-D surface program but includes the use of lighting effects. It generates a surface using strips of triangles, and for each three vertices, a normalized vector perpendicular to the surface is calculated. From that information, lighting properties can be calculated.

Source Code
Working with Nurbs

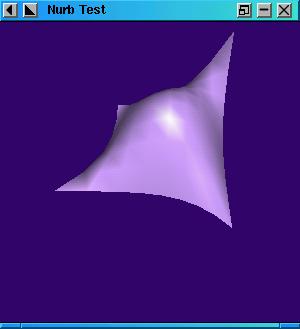

This program creates a 3-Dimensional surface using an approach called a nurb. This example surface is defined by a grid of only 16 points, and then special functions handle the curvature and lighting effects.

Source Code

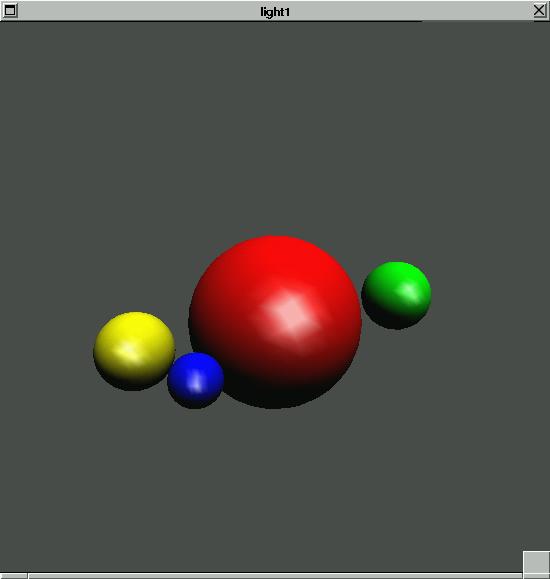

Animation and Lighting of Objects   #1

3-D Animation #1 3-D Animation #1 - Later

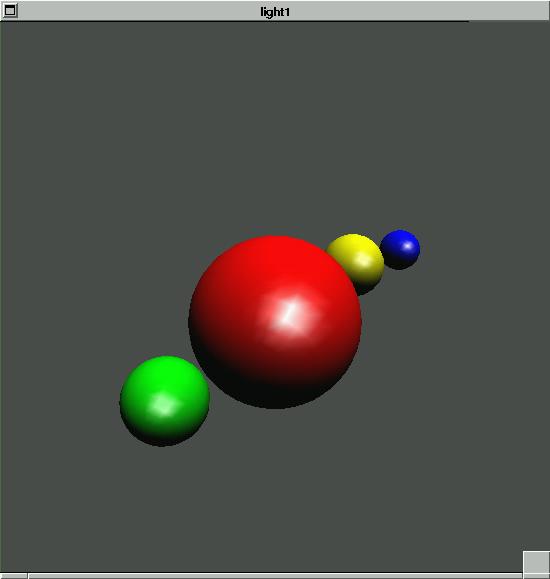

This program draws several rotating spheres in 3-space. The red sphere is the center of rotation with the yellow and green spheres acting as planets. The blue sphere orbits the yellow sphere as if it were a moon. This program uses advanced routines from "glut", the OpenGL Utility Toolkit, rather than "glaux". The program includes examples of depth buffering, surface properties, and lighting effects.

Source Code
Animation and Lighting of Objects   #2

3-D Animation #2 - Start 3-D Animation #2 - Later

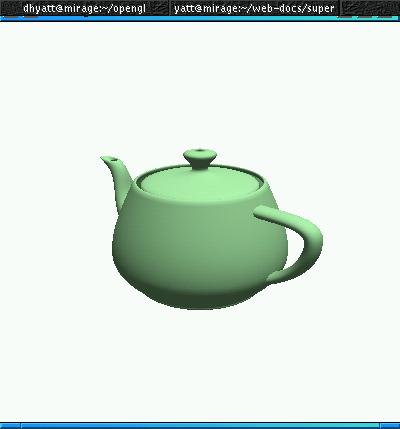

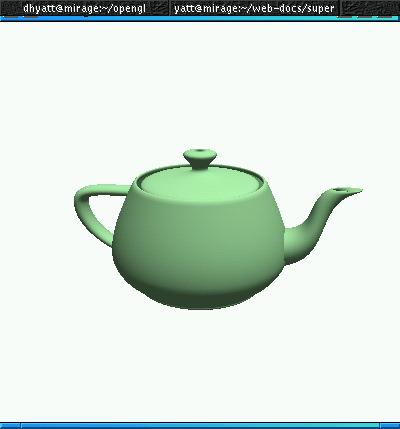

This program draws a simple green teapot that rotates in space. The program uses the command glutIdleFunc( ) to switch between a display that rotates and one that does not.

Source Code

The following UNIX scripts will be helpful when compiling on the LINUX systems in Jefferson's CS Lab. The script includes paths to the various libraries including the header files for OpenGL and X-windows. The script will expect the user to provide the name of the source file, but without the extender. If the compilation is successful, it will create an executable file of that same name.

Student Projects

The following are some student projects from recent Supercomputer Applications classes.
