Projectiles in Motion

Overview

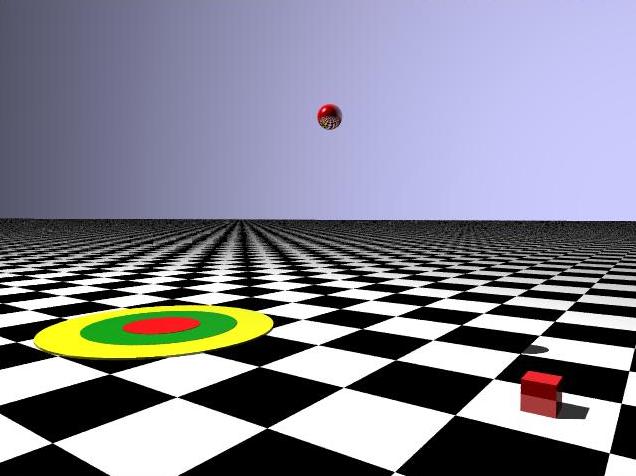

Projectile Launced Toward Distant Target

The following computer simulation model is suggested as an interactive application dealing with trajectory, a simple projectile aimed toward a distant target. It is designed to let students experiment with a number of physics concepts that are taught in grades K-12 and could be used with multiple levels of understanding. Students in lower grades could experiment with the concepts in an intuitive sense, whereas students in higher grades could solve physics problems, using this computer model to test their results. The model would probably be written in 3D OpenGL graphics and could be accessed remotely through an X-windows client or could be complied and run locally on a system of adequate power.

Components of the Model

The basic model would consist of the following components:

Target
The target would be composed of concentric colored circles that is situated somewhere on the plane.
Launcher
The location of the participant who will launch the projectile is illustrated as a red box.
Projectile
The object that is launched toward the target is illustrated as a red ball.
Control Panel
A companion window that controls a number of elements in the model and also reports various statistics would include the following:
- Distance to Target
- Launch Angle
- Launch Velocity
- Time Clock
- Score

Description of Model Action

Initially, the target represented by the colored bullseye would be positioned at some location in the plane. For some scenarios, the user could actually enter the distance away that the target might be, whereas in others, the target is positioned randomly.
The user would then select the variable component to be modeled in the problem, such as the launch angle or the initial velocity. As the simplest, Investigative Model, only one of these components would be variable. A mechanism such as mouse control, slide-bar, or data entry window would be used to modify the value of the parameter. All other components would be fixed. As a Demonstration Model, a wide variety of parameters could be modified.
When the user is ready, the projectile (red sphere) would be released from the launch pad (red box) and the animation observed. The Control Panel would update appropriate information such as vertical and horizontal displacement of the projectile, as well as the time on the clock. When the projectile hits the ground, the distance away from the target will be recorded as well as a score depending upon how close the projectile comes to the center of the bullseye.
As a Competitive Model, multiple participants could be engaged simultaneously, each participant identified in a unique color or marking on the projectile. Score would be calculated as a product of two factors: the closeness to the target and the quickness of response, and lowest combined score wins.

Possible Variations

The simple model presented above could have a number of variations that would provide even greater flexibility. With these options a number of standard physics problems could be modeled.

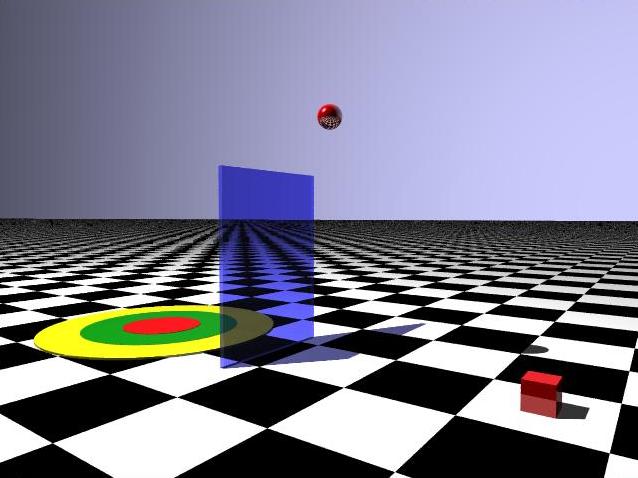

The path could be obstructed by other objects such as the translucent blue panel in the diagram to the right. This would restrict angles and velocities that allow the projectile to clear the barrier and still reach the target.

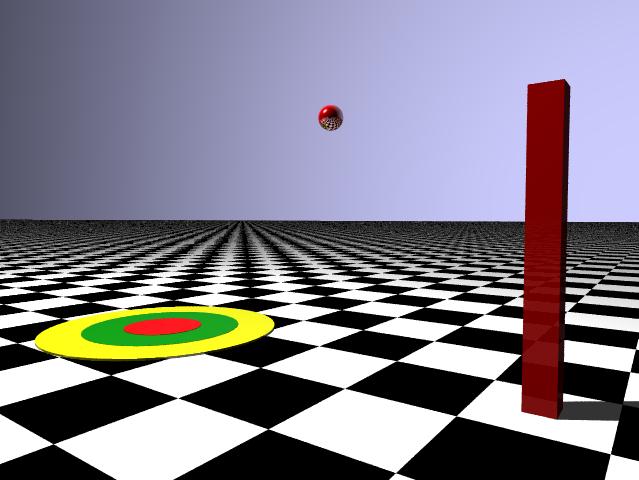

The relative height of the target as well as the launch pad would not have to be in the same plane.
The target as well as the launch pad could be mobile.
The projectile could be required to bounce one or more times, such as off of a back board. Collisions could be varied from elastic to inelastic.
The force of gravity could be raised or lowered to reflect behavior that might be observed on other planets.
Other forces could be included such as air resistance and cross winds, or rotational forces on the ball.

Other Examples

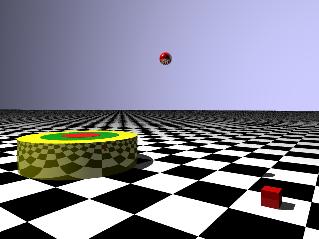

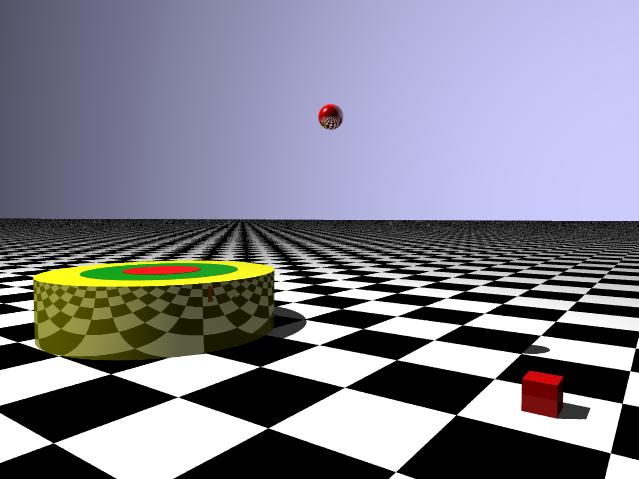

Elevated Launch Position
