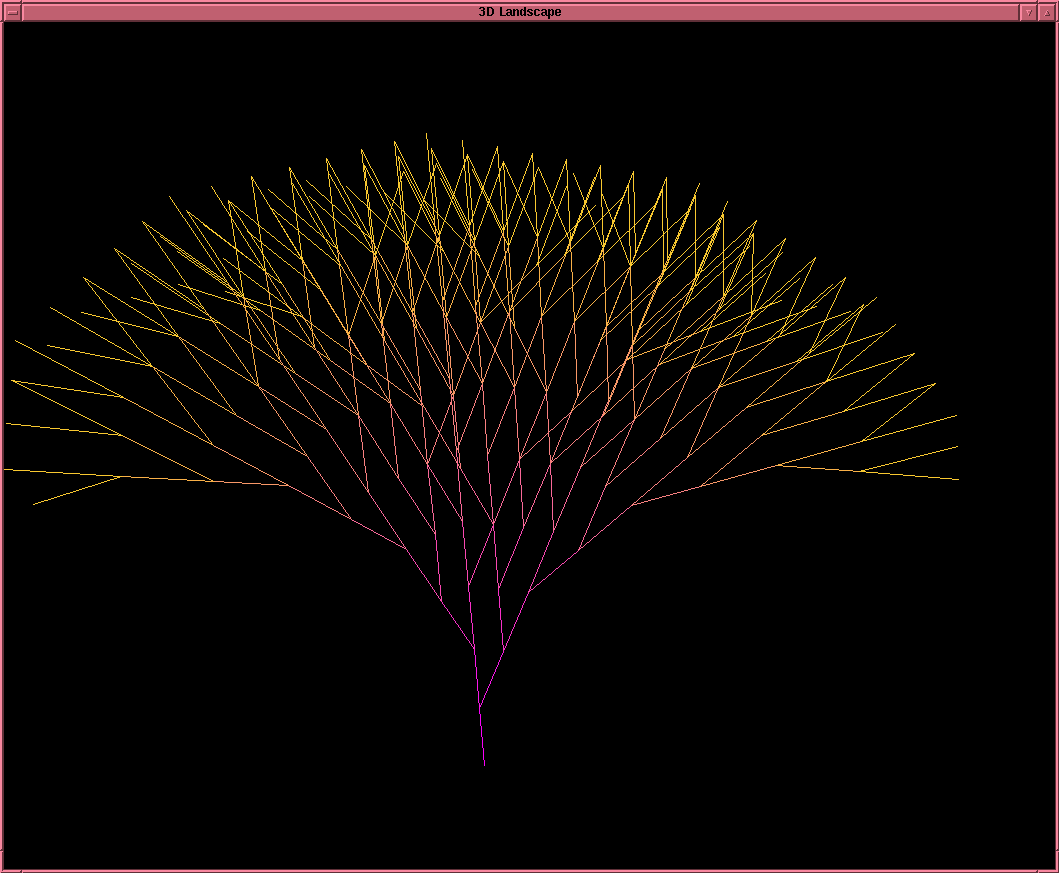

l_rake.gif (28586 bytes)As this web page will tell you, "Many living things grow in such a way as to produce fractal patterns. Examples include the passageways in the lungs or the branches of a tree. In these cases the self-similarity on different scales arises because growth involves repetition of the same simple process (e.g. branching). These simple, repetitive processes can often be neatly summarized as sets of simple rules.

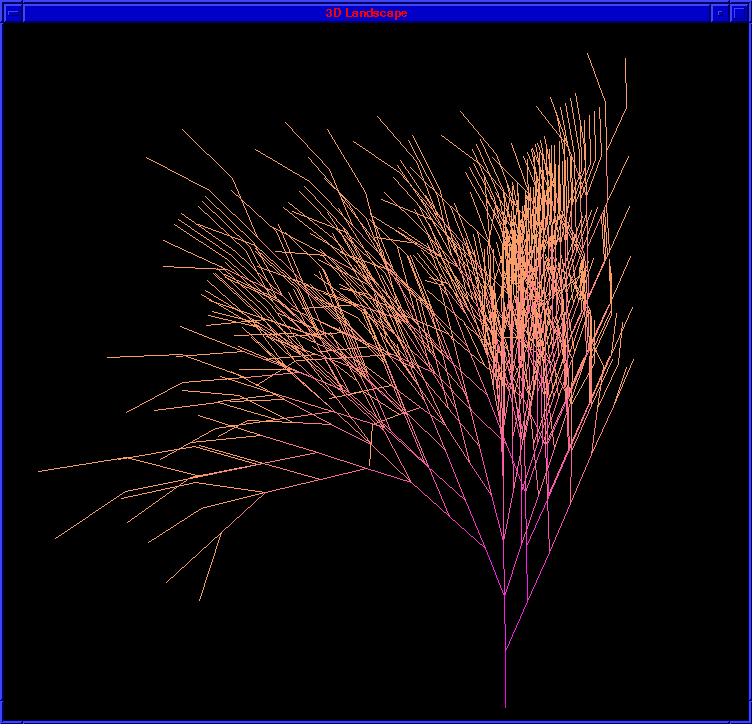

l_tree.gif (30159 bytes)"L-systems are sets of rules and symbols (also known as 'formal grammars') that model growth processes. The name 'L-system' is short for 'Lindenmayer System', after Aristid Lindenmayer, who was one of the first people to use syntactic methods to model growth."

My program accepts a formal grammar in a file which it is passed as a command-line parameter.  This file is of the following format:

8 2           // ITERATIONS RULES
*X            // Axiom
X [R*Y][U*Y]  // Rule 1
Y [D*X][L*X]  // Rule 2, etc.

The program then modifies the initial string according to the grammar given with the number of iterations specified.  It follows the resulting instruction string to generate a 3-dimensional image in a window, which can then be viewed from any angle and location using the following keys:

Key Function Key Function
H Move left K Move right
U Move forward J Move backward
O Move up L Move down
A Rotate -Y D Rotate +Y
S Rotate -Z W Rotate +Z
R Rotate +X F Rotate -X

View the code for this project here.
